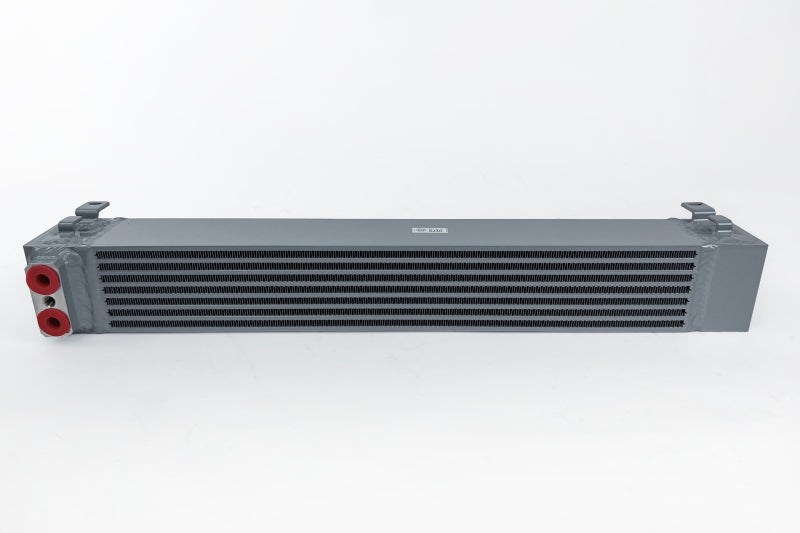

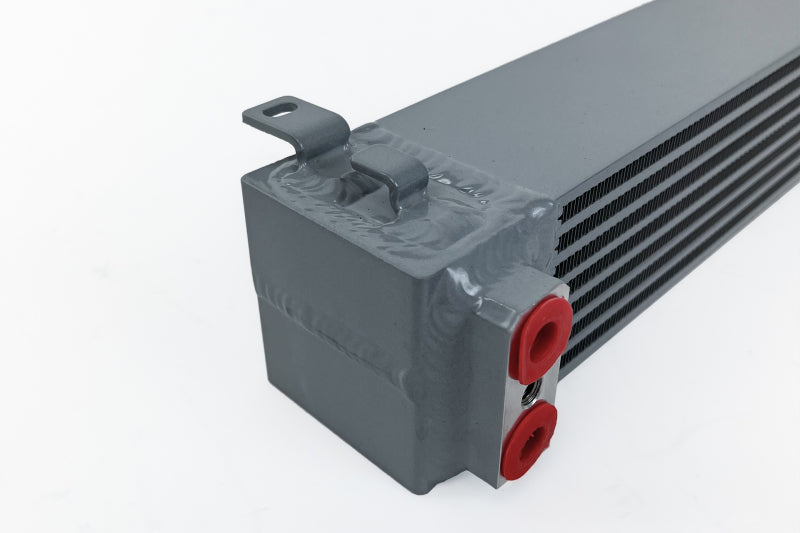

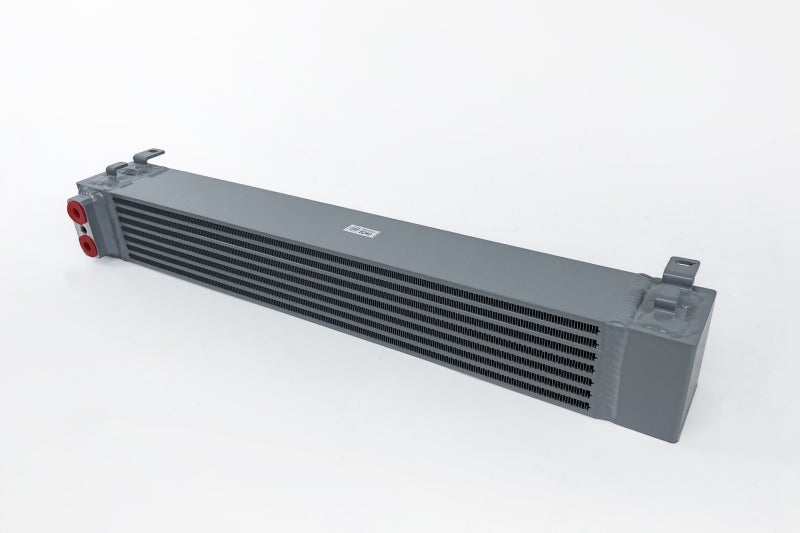

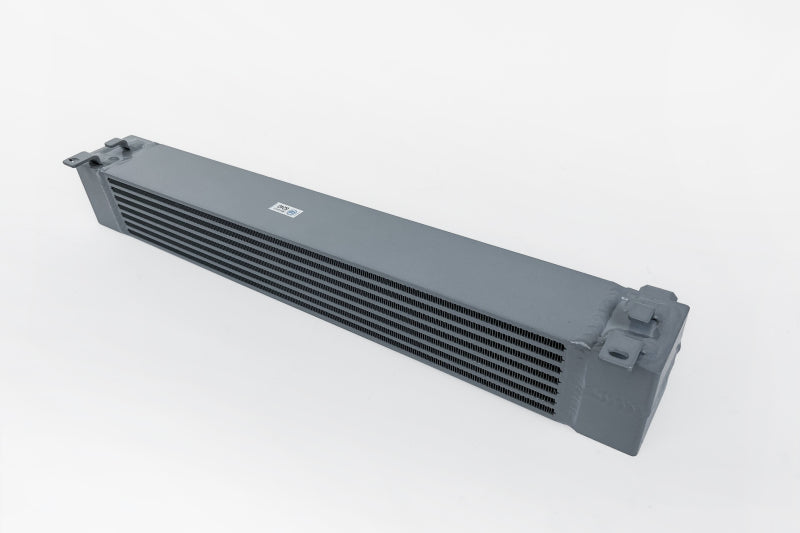

Enter the new CSF S54 Swap Race Spec Oil Cooler. This new oil cooler is shorter on the right hand side allowing owners to run the A/C lines in the OEM path. Even though the #8240 is slightly smaller than the #8032, you can expect similar performance levels as they both feature a dual pass design with 8 cooling rows and are the same turbulated heavy-duty bar/plate construction. Both oil coolers utilize the S54 OEM oil line connections. However, CSF will be offering a fitting kit with -10 AN hookups for customers looking to run custom oil lines. This fitting kit should be available by the second quarter of 2023.

• Turbulated Heavy-Duty Bar/Plate Design for the Most Reliable & Durable Oil Cooler Available
• Fully TIG-Welded Extruded End Tank Design for Superior Reliability & Durability
• 8 Rows of Maximum Cooling with a High Density Multi-Louvered Fin Pitch Design
• Designed to Work with CSF's S54 Swap All-Aluminum Radiator (CSF #7211)
• Unique Top/Bottom Dual-Pass Design for Maximum Surface Area and Flow
• For S54 Swap Vehicles without Air Conditioning (A/C) see CSF #8032
• For S54 Swap Vehicles with Air Conditioning (A/C)
• Accepts Factory Oil-Line Connections
• Motorsport Silver Finish

This Part Fits:
