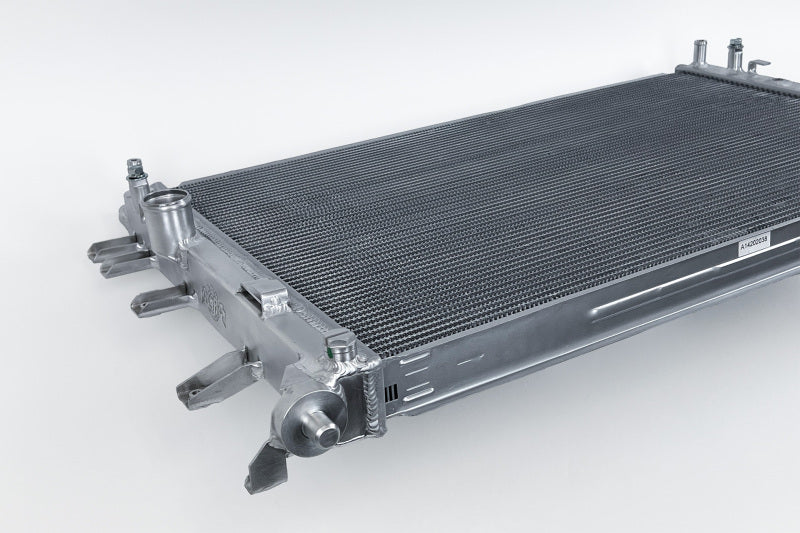

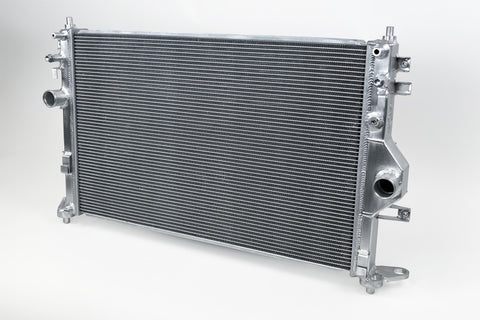

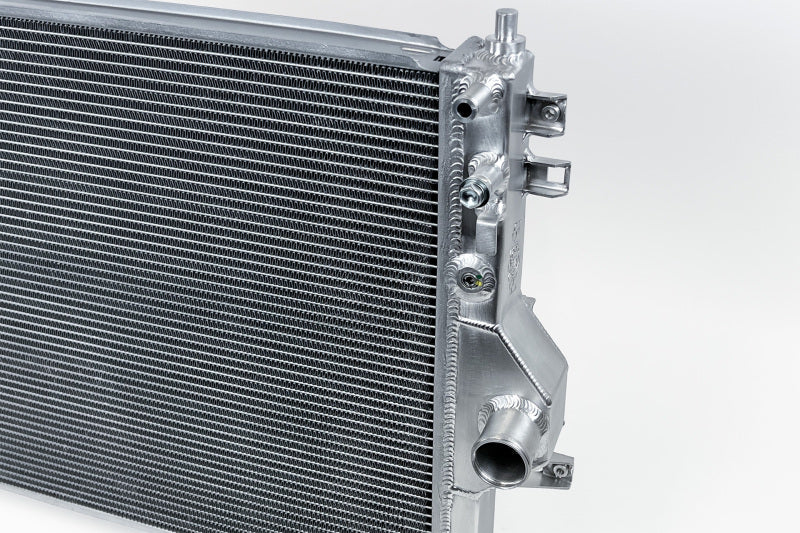

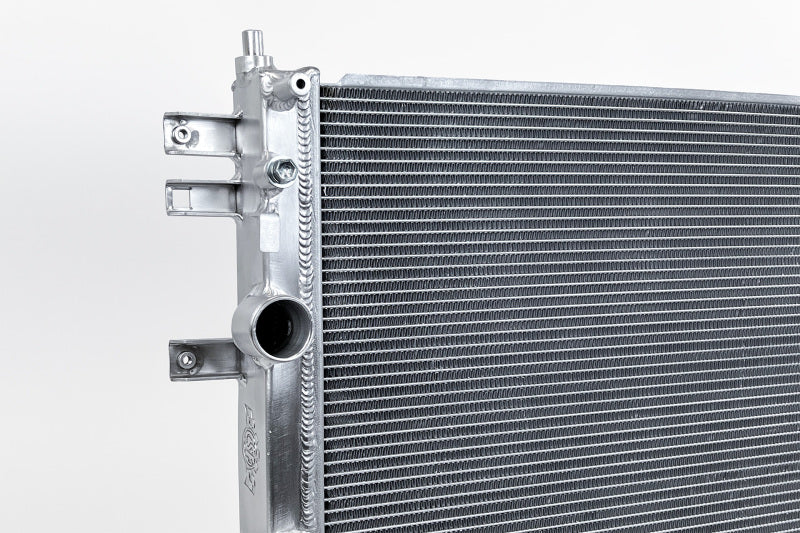

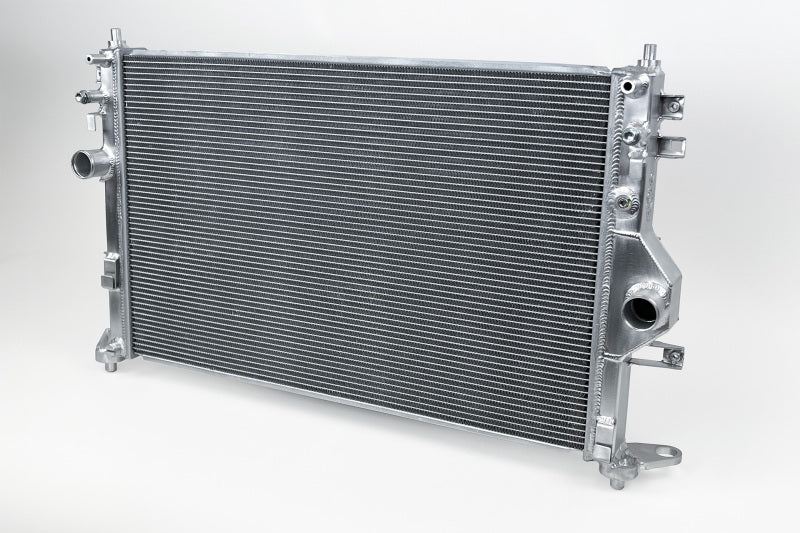

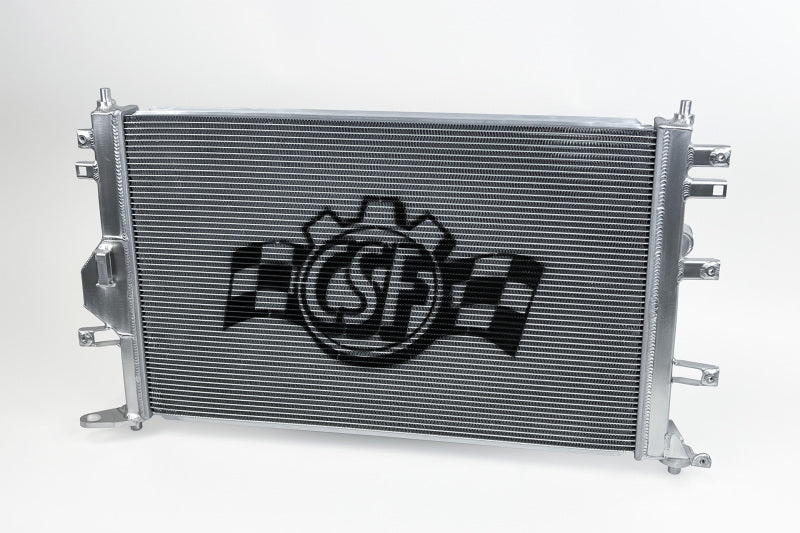

With data collected by development partners and race teams, CSF was able to design the ideal High-Performance replacement. The CSF radiator features the latest 5mm fin technology. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.

• End tanks deigned with additional clearance for the CSF x Jackson Racing Intercooler or other aftermarket intercoolers with larger inlet and outlet pipes
• New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Pre-installed foam strips on top and bottom end plates for increased sealing
• Pre-plugged 1/8th NPT temperature sensor port on right side tank
• CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
• Cooling Tubes with CSF's Exclusive B-Tube Technology
• 100% All Aluminum TIG-Welded Construction
• 2-Row, 42mm Ultra-High-Performance Core
• Individually Leak and Pressure Tested
• Hand Brushed Satin Finish
• 2-Year Limited Warranty
• Recessed the lower
